• First PCB I have ever designed in EAGLE CAD, soldered together precisely made LED Cube Matrix.
• implemented a program to utilize software PWM for persistence of vision and a dimming effect simultaneously.
• Used a Multiplexed design to allow for only 20 ports on a micro controller to run the cube and each LED separately.
• Programmed in BASIC using for loops using the principles of PWM and persistence of vision to quickly pulse each horizontal layer on once at a time over and over in a for loop creating one frame in an animation.
• The human eye cannot see fast enough to see that multiple horizontal layers are never on at once during the animation.
• Check out more At https://devpost.com/software/light-turbine-4x4-led-cube.

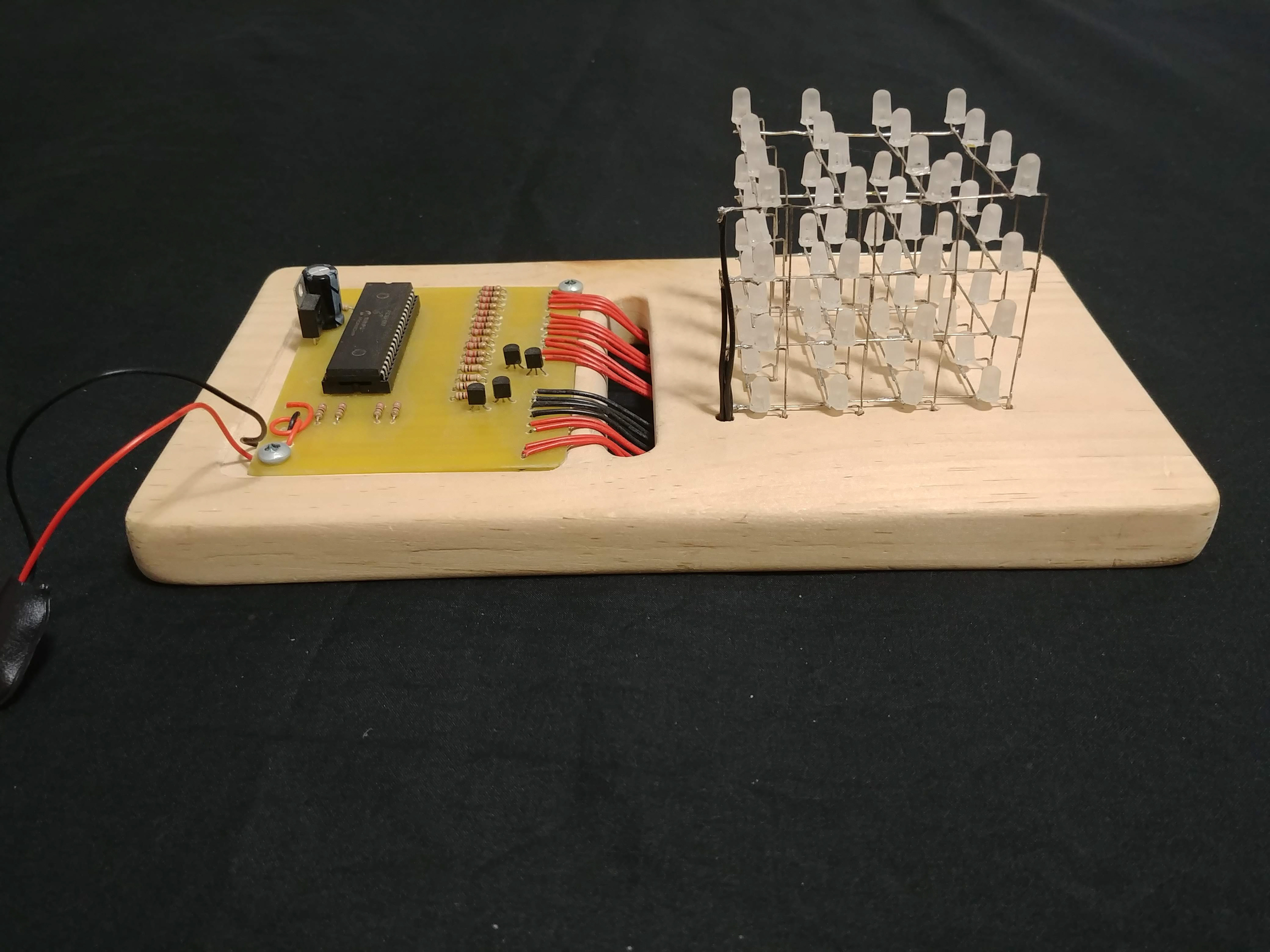

![Left side View](https://cdn.myportfolio.com/5d59ecdbe05a6fff84a6d9e2fdc08e32/92573da7-4695-410a-88b1-64c7460b581f_rw_3840.jpg?h=99f573ab56e3eb71da58386cf5f8f3b5)
Left side View

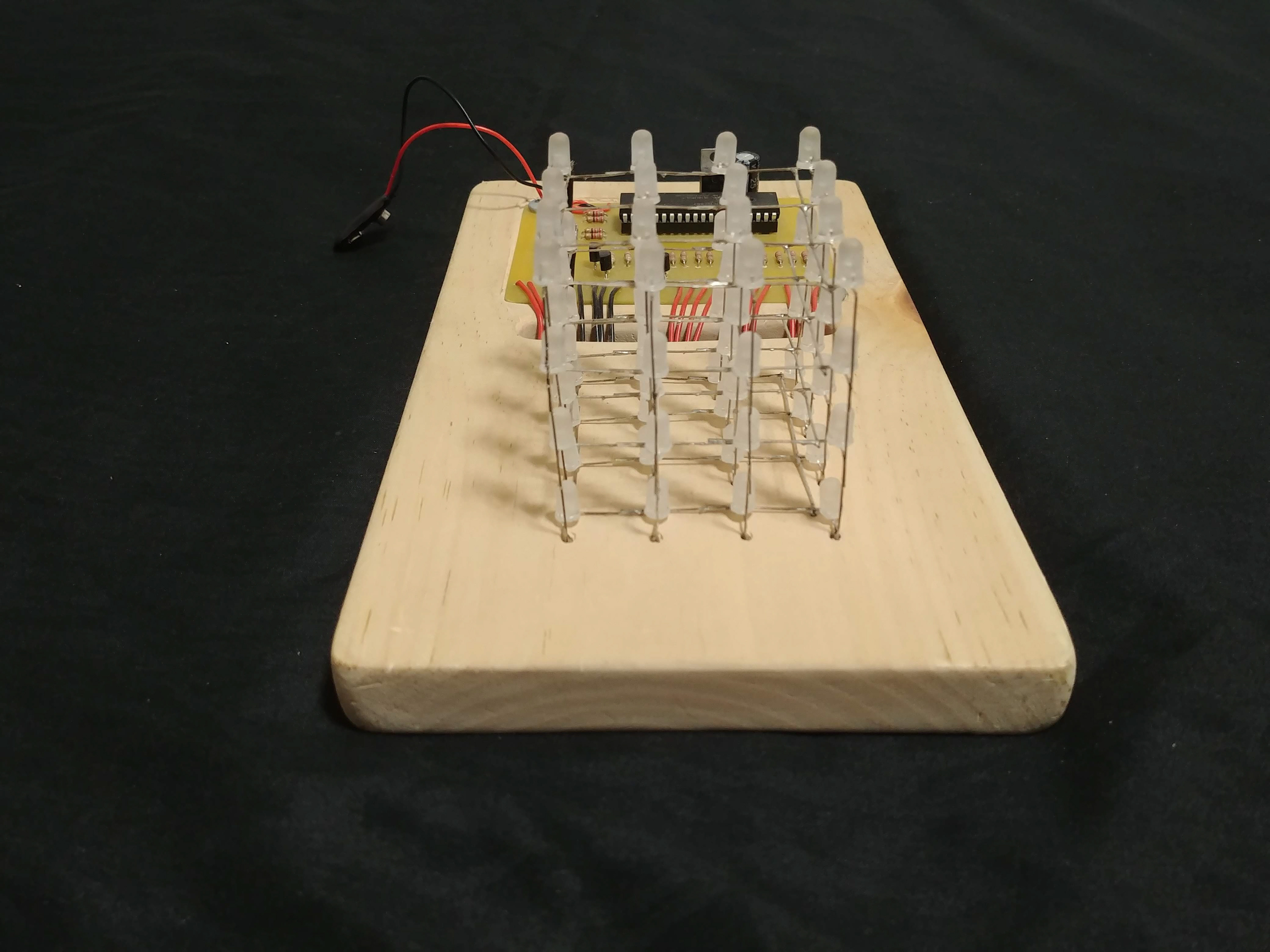

![Front View](https://cdn.myportfolio.com/5d59ecdbe05a6fff84a6d9e2fdc08e32/09cfe240-6577-48d0-9cf7-85f3b9b9a9b0_rw_3840.jpg?h=723dbb587fedda013973f399e2292192)
Front View

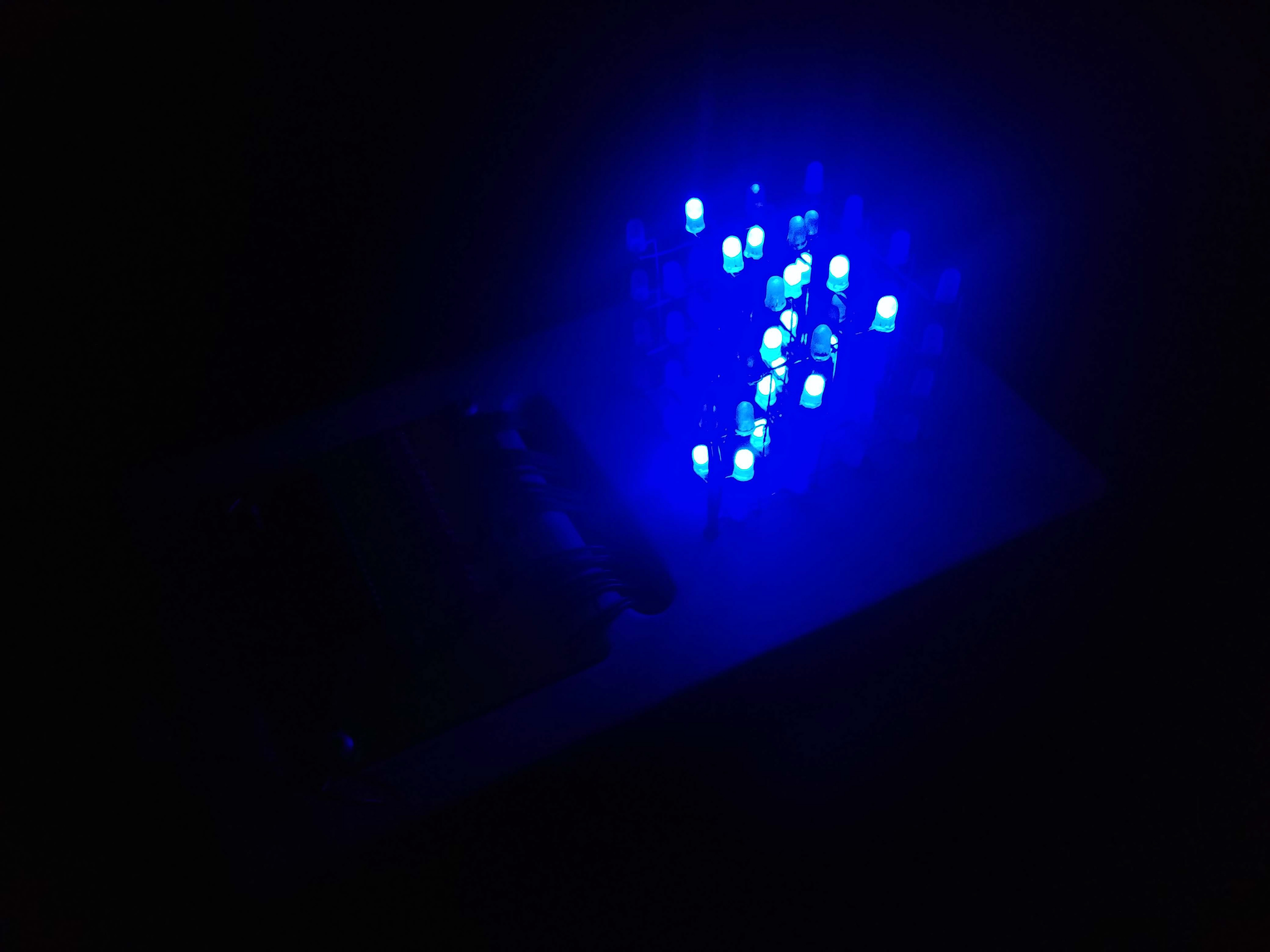

![Light Animations](https://cdn.myportfolio.com/5d59ecdbe05a6fff84a6d9e2fdc08e32/a4dcfecd-5587-46be-88d1-00f5f8df5255_rw_3840.jpg?h=51b1e6ad41feae23c7af1c89ceefb50b)
Light Animations
![Right Side View](https://cdn.myportfolio.com/5d59ecdbe05a6fff84a6d9e2fdc08e32/c83869b2-e476-46ec-a58b-b99280c917a4_rw_3840.jpg?h=f5a60855540fdb7127d0f7d72d6cd2d5)
Right Side View

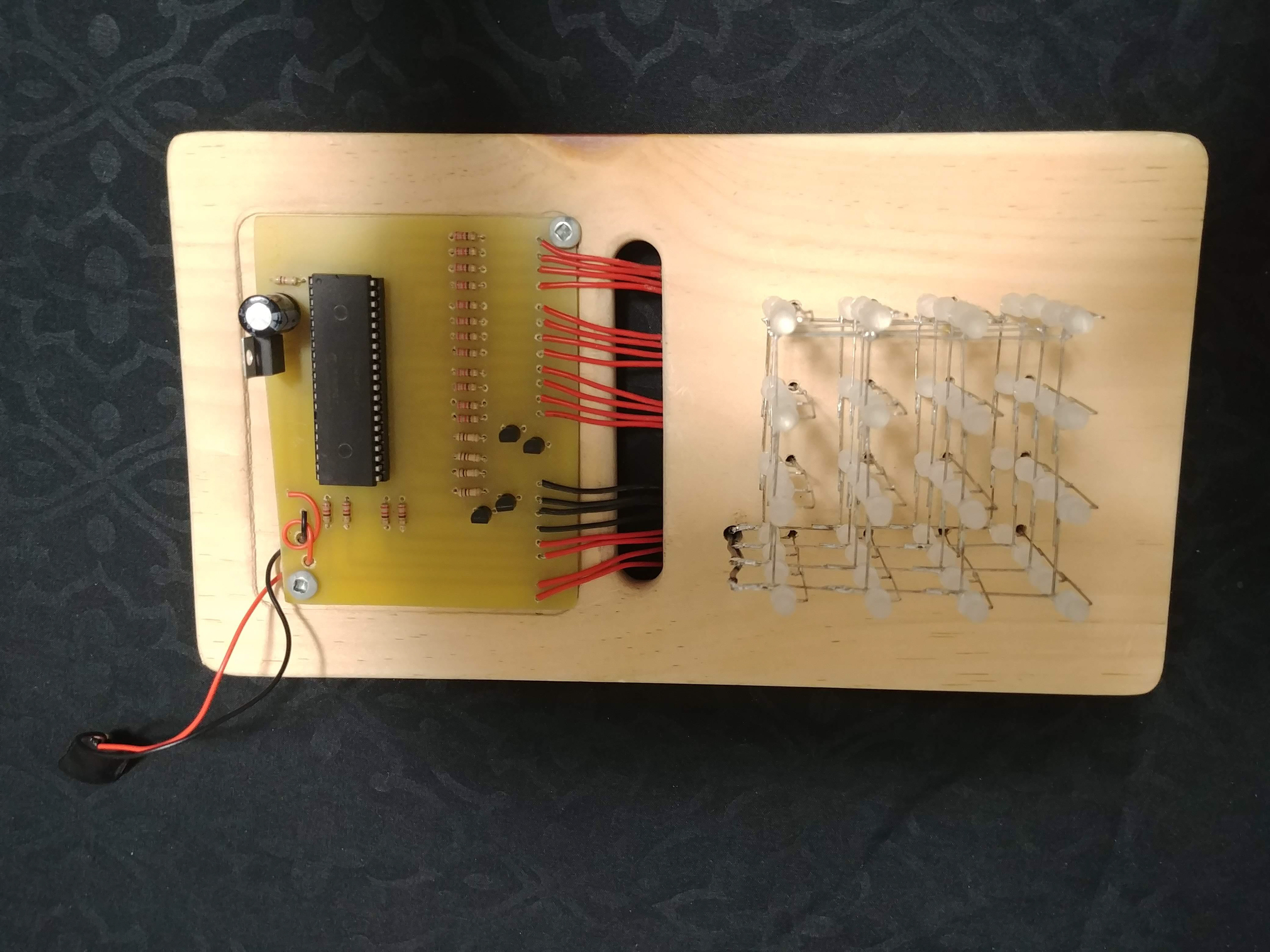

![Top View](https://cdn.myportfolio.com/5d59ecdbe05a6fff84a6d9e2fdc08e32/a6145067-c6d9-4d63-aa5f-4ce7bdd24261_rw_3840.jpg?h=17e45c3e5f28d504ec444d697e510582)
Top View

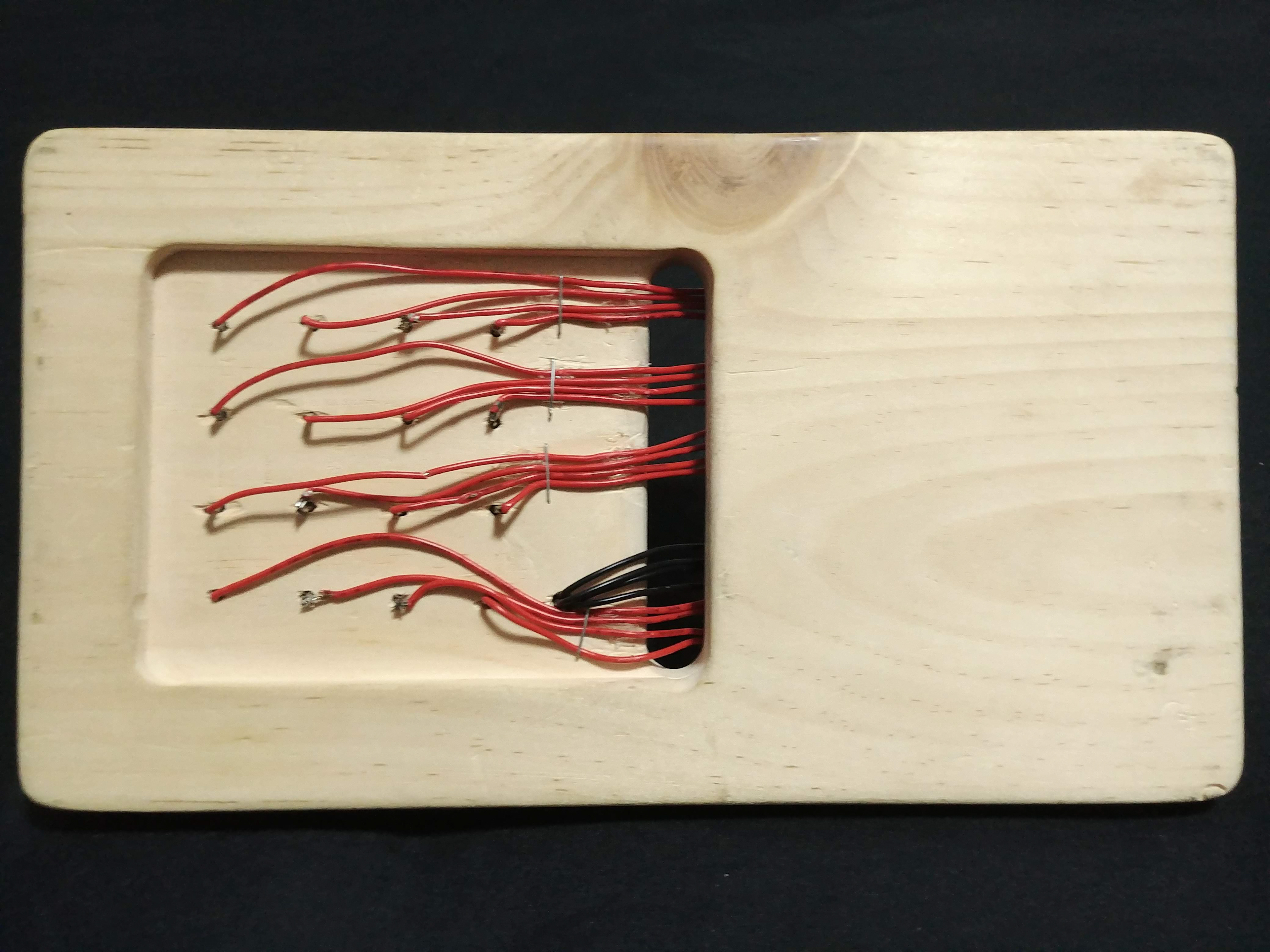

![milled out bottom and hole](https://cdn.myportfolio.com/5d59ecdbe05a6fff84a6d9e2fdc08e32/55a3ac54-9501-4853-8b84-efedb7bd7597_rw_3840.jpg?h=385f5762edf875b972b6a75cc482def8)
milled out bottom and hole
![Motherboard PCB](https://cdn.myportfolio.com/5d59ecdbe05a6fff84a6d9e2fdc08e32/75fb032b-8d73-4f6a-a515-2bb16534f77d_rw_3840.jpg?h=e90e8263c0e7b005e5c0428e95b21acf)
Motherboard PCB

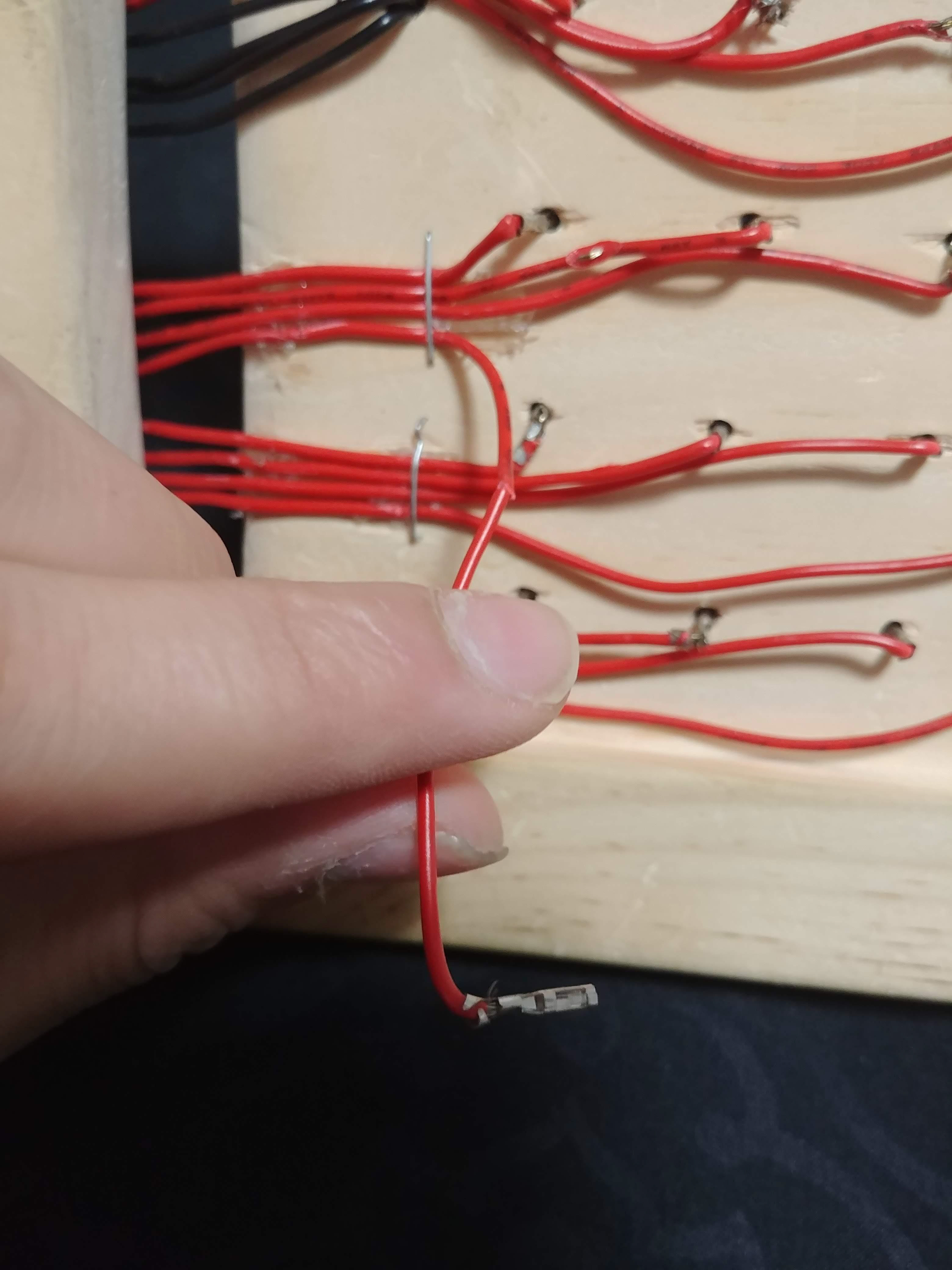

![Modular crimped female header pins](https://cdn.myportfolio.com/5d59ecdbe05a6fff84a6d9e2fdc08e32/ee437621-67b9-484b-95ad-6babb480a83e_rw_3840.jpg?h=2612a3f6131424b5dd7f89cde4553194)
